Seals for oil and gas processing equipment Description
Oil and gas processing equipment is an important part of the oil and gas industry, and they are responsible for separating, purifying, and storing the extracted oil and gas mixtures. In this process, seals play a vital role in ensuring the proper functioning of the equipment and the safety of the environment. The following is an introduction to the contents of seals for oil and gas processing equipment:
The importance of seals for oil and gas processing equipment
During the operation of oil and gas processing equipment, it needs to deal with high-pressure, corrosive, flammable, and explosive media, so the requirements for seals are extremely high. The main function of the seal is to prevent oil and gas leakage, ensure stable pressure inside the equipment, and protect the environment from pollution. A reliable sealing system can reduce maintenance costs, extend equipment life, and reduce safety risks due to leaks.
| Type of material | Oil resistance | Temperature resistance | Corrosion resistance | Mechanical properties |
|---|---|---|---|---|
| NBR | Good | -10°C to 100°C | Good | Good |
| EPDM | So so | -25℃ to 150℃ | Good | Good |
| VMQ | So so | -20℃ to 200℃ | Insufficient | Good |
| FKM | Very good | -20℃ to 250℃ | Very good | Good |
| PTFE | Very good | -20℃ to 250℃ | Very good | Very good |
Type of seal
Seals commonly used in oil and gas processing equipment include:

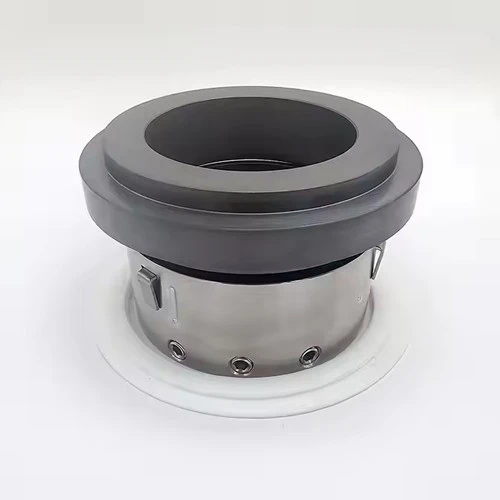

Mechanical seals: Consist of a pair of rings that rotate relative to each other, and are sealed with precise fit and lubrication. Mechanical seals are suitable for high-speed and high-pressure environments.
Packing sealing: Soft materials (e.g., asbestos rope, PTFE) are used to fill between the shaft and the housing to stop fluid leakage by compressing the material.
Floating seal: A dynamic seal that maintains the sealing effect under the vibration and eccentricity of the shaft.
O-ring: A round rubber seal that is widely used in static and dynamic sealing.
Magnetic sealing: The use of magnetic force to maintain contact between the sealing surfaces, suitable for occasions where contact is not allowed.
Selection of sealing materials
The choice of sealing material depends on the working environment of the oil and gas processing equipment, including temperature, pressure, chemical properties of the medium, etc. Commonly used materials are:
Rubber: suitable for general working conditions, with good elasticity and sealing.
Polytetrafluoroethylene (PTFE): High-temperature resistance, corrosion resistance, suitable for harsh environments.
Metals: such as stainless steel, suitable for high-pressure and high-temperature environments.
Composites: Combine the benefits of a variety of materials to suit specific sealing needs.
Maintenance and replacement of seals
Regular inspection and maintenance of seals is key to keeping oil and gas processing equipment up and running. Leaks can be caused by wear, age, or damage to seals. Therefore, the condition of the seals needs to be checked regularly and replaced if necessary.
Conclusion
Seals for oil and gas processing equipment are key to ensuring safe and efficient oil and gas processing. Choosing the right seal type and material, as well as performing regular maintenance and replacement, is critical to maintaining equipment performance and protecting the environment. As technology advances, new sealing materials and designs continue to emerge to further improve the reliability and safety of oil and gas processing equipment.
