Hydraulic Seals For Drilling Rigs

Drilling Rig Hydraulic Seals Overview

Hydraulic seals for drilling rigs are a crucial part of the hydraulic system of drilling rigs, and their performance is directly related to the stability and working efficiency of the hydraulic system. The main function of hydraulic seals is to prevent liquid leakage in the hydraulic system and ensure the effective transmission of hydraulic energy in the system, to realize various actions and functions of the drilling rig.

Hydraulic seals are usually made of oil-resistant, abrasion-resistant, and high-temperature-resistant materials, to adapt to the needs of drilling rigs running for a long time and under high loads in harsh working environments. In the selection and use of the process, needs to fully consider the hydraulic seals of the working pressure, working temperature, the nature of the medium, and other factors, to ensure its good sealing performance and service life.

Types and characteristics of hydraulic seals for drilling rigs

There are many kinds of hydraulic seals for drilling rigs, which can be divided into two categories static seals and dynamic seals according to their structure and usage.

Static seals

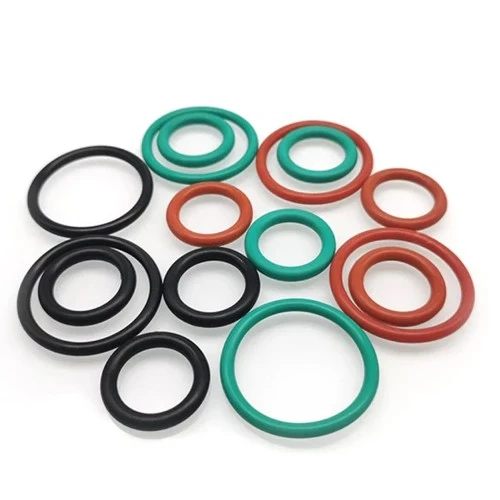

Static seals are mainly used for sealing between fixed parts in the hydraulic system of drilling rigs, such as the end cover of hydraulic cylinders, valve bodies, and so on. Common static seals are O-ring, plane gasket, etc. O-ring is widely used in the hydraulic system for its simple structure, easy installation, good sealing performance, and other advantages; the plane gasket is suitable for a larger area of the seal, with good sealing effect and pressure resistance.

Dynamic seals

Dynamic seals are mainly used for sealing between the moving parts in the hydraulic system of drilling rigs, such as the pistons of hydraulic cylinders, piston pumps, and so on. Common dynamic seals are Y-type seals, V-type seals, U-type seals, and so on. These seals are subject to greater friction and pressure in the hydraulic system, so they need to be made of wear-resistant, high-temperature-resistant materials to ensure their long-term stable sealing performance.

The working principle of hydraulic seals for drilling rigs

The working principle of hydraulic seals mainly depends on the elasticity and lubricity of their sealing lips. When the seal is installed to the corresponding sealing part, the lip is subjected to pressure and elastic deformation occurs, close to the sealing surface, forming an effective sealing barrier. At the same time, the lubrication film on the surface of the seal lip can reduce friction, reduce wear, and prolong the service life of the seal.

In the hydraulic system of the drilling rig, seals also need to withstand high pressure, high speed, high temperature, and other harsh working environments. Therefore, the material selection, structural design, and manufacturing process of seals need to be strictly selected and optimized to ensure that they have good sealing performance and durability.

Selection and application of hydraulic seals for drilling rigs

The selection of suitable hydraulic seals is essential to ensure the normal operation of the hydraulic system of the drilling rig. In the selection process, the following factors need to be considered:

Working pressure and temperature

According to the working pressure and temperature range of the hydraulic system, select the seals with corresponding tolerance.

Nature of the medium

Understand the nature of the medium used in the hydraulic system, and select the sealing material compatible with it, in order to avoid corrosion or dissolution of the medium on the seals.

Movement speed

For dynamic seals, need to consider the impact of the speed of movement on the sealing performance, and select a better wear resistance and anti-fatigue properties of the seals.

Installation space

According to the installation space limitations of the sealing part, select the appropriate size of the seal to ensure its smooth installation and use.

In addition, in the actual application process, the following matters should also be noted:

Regularly check the wear and tear of the seals, and replace the seals with serious wear and tear in time to avoid leakage problems.

Keep the sealing parts clean to prevent impurities and contaminants from entering the sealing system and affecting the sealing performance.

When installing seals, they should be carried out in strict accordance with the operating procedures to ensure that the seals are installed correctly and tightly without gaps.

Maintenance and management of hydraulic seals of the drilling rig

In order to extend the service life of the hydraulic seals and improve the stability and efficiency of the hydraulic system, the hydraulic seals need to be maintained and managed on a regular basis. Specific measures include:

Regular inspection

Regularly check the seals in the hydraulic system, observe whether there is wear and tear, aging, deformation, and other problems, timely detection of problems, and processing.

Cleaning and maintenance

Keep the hydraulic system clean, and regularly clean the impurities and pollutants in the system to prevent them from causing damage to the seals. At the same time, lubrication and maintenance of seals to reduce friction and wear.

Replacement cycle

According to the use of seals and life, set a reasonable replacement cycle to avoid performance degradation or failure due to prolonged use.

In addition, in the process of maintenance and management, it is also necessary to strengthen personnel training and improve the skill level and safety awareness of operators to ensure the safe and stable operation of the hydraulic system.

Summary and Prospect

As an important part of the hydraulic system, the performance of the hydraulic seals of the drilling rig directly affects the operational efficiency and safety of the drilling rig. Therefore, it is crucial to choose suitable seals, install and use them correctly, and maintain and manage them regularly. With the continuous development of science and technology, the application of new materials, new processes, and new technologies will provide more possibilities for the performance improvement and life extension of hydraulic seals. In the future, hydraulic seals for drilling rigs will develop in the direction of higher performance, longer service life, and more environmental protection, which will provide a strong guarantee for the stable operation and high efficiency of drilling rigs.

Tips: Please provide drawings for customized products, we can complete the samples within 4-8 working days.
