Name: Plate Heat Exchanger Rubber Liner
Brand: LINDE POLYMER
SKU: 258763146

Description

Technical Parameters

Products Description

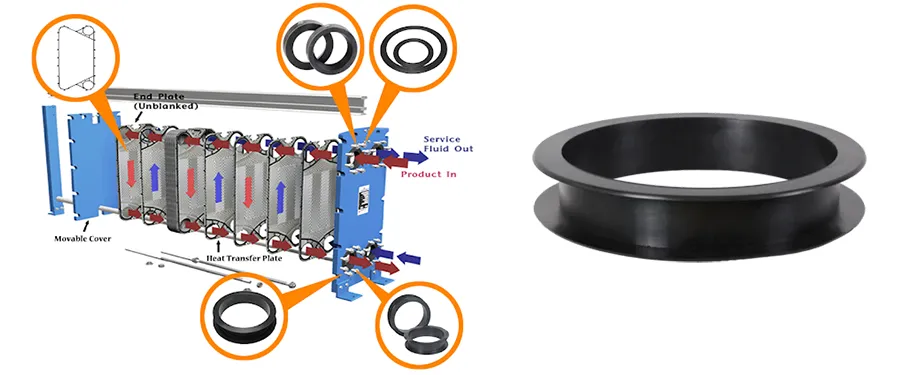

Plate-Heat-Exchanger-Rubber-Liner

Plate heat exchanger rubber liner refer to rubber seals used in plate heat exchangers to ensure effective isolation and sealing of fluids between plates. These rubber liners are usually embedded in the edges of metal plates to form fluid channels and prevent leakage or mixing between different fluids.

Main functions and advantages

Main Functions

Sealing: Prevent fluid leakage and ensure the sealing of the heat exchanger.

Protection: Reduce direct contact between metal plates and fluids to prevent corrosion.

Guide fluid: Ensure that the fluid flows in the channels inside the heat exchanger to improve heat exchange efficiency.

Advantages

1. High heat transfer efficiency: The rubber liner further enhances the heat transfer effect of the plate heat exchanger, better sealing the gaps between the plates, thereby reducing heat loss and improving overall thermal efficiency.

2. Compact design: Plate heat exchangers are usually more compact than traditional shell and tube heat exchangers, and the use of rubber linings makes the equipment occupy less space.

3. Low fluid resistance: The design of the rubber liner helps to keep the fluid flowing smoothly between the plates, reducing fluid resistance, and thereby improving the flow rate and heat transfer performance of the fluid.

Materials

Plate heat exchanger rubber liner is usually made of a variety of materials, common materials include:

NBR (nitrile rubber): suitable for oil and chemical media, with good oil resistance and chemical resistance.

EPDM (ethylene propylene diene monomer rubber): suitable for hot water and steam, with good heat resistance and aging resistance.

HNBR (hydrogenated nitrile rubber): suitable for high-temperature and high-pressure environments, with higher heat resistance and chemical resistance.

EPDM 80	Property	Unit	Test Method	Test Parameter	Value
	Hardness	Shore A	ASTM D 2240		80 ±5
	Tensile Strength	MPa	ASTM D 412		13.2
	Specific Gravity	g/cm³	ASTM D 297		1.22
	Ultimate Elongation	%	ASTM D 412		172
	Compression Set	%	ASTM D 395 B	22h / 150°C	19
	Tear Resistance	N/mm	ASTM D 624 C		52
	Low temp. resistance	°C	ASTM D 2137	brittleness no cracks after 3 min. at	-54
	Low temp. resistance	°C	ASTM D 1329	TR10	-42

Application areas

Chemical Industry:
Used to handle corrosive chemicals such as acids, alkalis, and salt solutions, protecting metal parts from corrosion.

Food Processing:
During the production of food and beverages, rubber liners ensure the hygiene of equipment and prevent cross-contamination.

Pharmaceutical Industry:
During the pharmaceutical process, rubber liners help maintain the purity of the product and ensure that strict hygiene standards are met.

HVAC System:
In heating, ventilation, and air conditioning systems, rubber liners prevent scale and corrosion and extend the service life of equipment.

Energy Industry:
In heat recovery and cooling systems, rubber liners can improve heat exchange efficiency and prevent energy loss.

Marine and Ship Applications:
In marine environments, rubber liners can resist the erosion of salt water and protect equipment.

Wastewater Treatment:
Used in sewage treatment plants, rubber liners can effectively prevent corrosion and wear and extend the life of equipment.
