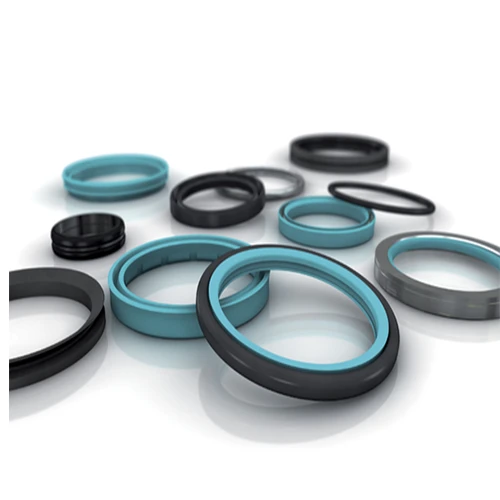

Name: Subsea Ball Valve Rubber Seals
Brand: LINDE POLYMER
SKU: 256210007

Description

Technical Parameters

Products Description

Subsea ball valve rubber seals are sealing devices for underwater ball valves, mainly used in the oil and gas industry. The main function is to ensure that the valve can reliably isolate the fluid in extreme marine environments, prevent the internal fluid from leaking into the marine environment, and also prevent seawater from invading the valve and affecting the normal operation of the valve.

Subsea-Ball-Valve-Seals

Oil and Gas Sealing Solutions

Seal Design

Multi-contact design: Subsea ball valve rubber seals adopt a single-piece design, which significantly improves the sealing integrity and leak tightness, especially in high-pressure applications. It provides higher contact force through multiple sealing hardware interfaces, thereby enhancing the sealing effect.

Bidirectional sealing: In some cases, bidirectional sealing can be used to cope with the situation where the external pressure is equivalent to or higher than the internal medium pressure.

Operational Performance

Low friction and long life: Designs such as graphite-filled PTFE stem seals can reduce operating torque and extend cycle life.

Water and sludge intrusion: Additional O-rings are designed to prevent seawater from entering the valve interior, thereby protecting valve operation from being affected.

Applicable Conditions

Pressure resistance: Subsea ball valve rubber seals can withstand internal pressures up to 20,000 psi (1379 bar), suitable for deepwater applications, ensuring safe and reliable operation in extreme environments.

Temperature range: Depending on the O-ring material, the operating temperature range can range from -29°C to 260°C, adapting to a variety of operating environments.

Material Technical Data Sheet

HNBR 90	Property	Unit	Test Method	Test Parameter	Value
	Hardness	IRHD	ASTM D 1415		90 ±5
	Specific gravity	g/cm³	ASTM D297		1.39
	Tensile Strength	MPa	ASTM D 412		18.68
	Ultimate elongation	%	ASTM D 412		105
	Compression set	%	ASTM D 395 B	22h / 150°C	22.9
	Low temp. resistance	°C	ASTM D 2137	brittleness no cracks after 3 min. at	-39
	Low temp. resistance	°C	ASTM D 1329	TR10	-23.2
